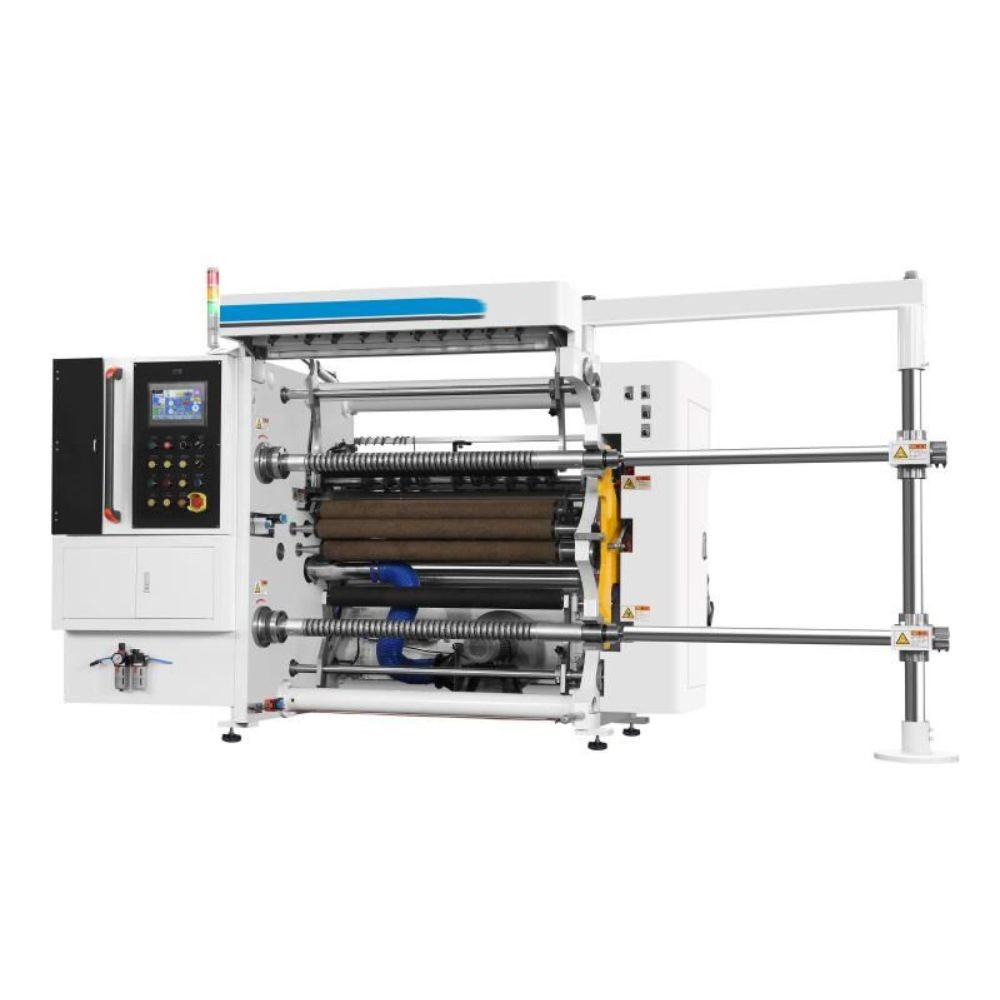

PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed

PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed
Basic Information
Place of Origin: China
Brand Name: PRINTYOUNG
Certification: CE
Model Number: PRY-D1300
Minimum Order Quantity: 1 Set
Price: US 28000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Type: Slitting Rewinder Production Capacity: 400 M/min
Max. Workable Width: 1350mm Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Italy, Algeria, South Africa, Morocco Place Of Origin: Zhejiang, China
Weight: 3500 Kg Warranty: 1 Year
Key Selling Points: Automatic Machinery Test Report: Provided
Video Outgoing-inspection: Provided Condition: New
Computerized: Yes Voltage: 380V
Dimension: 2.25mx4.3mx1.9m Jumbo Roll Width: 300-1350mm
Diameter Of Unwinder: 800mm Diameter Of Rewinding: 600mm
Paper Core Size For Unwinder: 3''an 6'' Paper Core Size For Rewinder: 3''
Slitting Speed: 10-400m/min Film Thickness Range: 10-150micron
Tolerance Of EPC: ≤0.1mm Min.Slitting Width: 30mm
Total Power: 12KW
Highlight:

Plastic Film Paper Slitting Rewinding Machine

,

Jumbo Roll Slitting And Rewinding Machine

,

PLC Paper Slitter Rewinder Machine

PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 0
PRY-D1300 Slitting Machine
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 1
Technical Parameters
PRY-D1300 Slitting Machine
Jumbo Roll Width
300-1350mm
Diameter of Unwinder
800mm
Diameter of Rewinding
600mm
Paper Core Size for Unwinder
3’’an 6’’
Paper Core Size for Rewinder
3’’
Slitting Speed
10-400m/min (for different mateails,speed different)
Film Thickness Range
10-150micron
Tolerance of EPC
≤0.1mm
Min.Slitting Width
30mm
Total Power
12KW
Weight
3500KG
Overall Dimension (LxWxH)
2.25mx4.3mx1.9m
Packging Dimension
2.25mx3mx1.9m
Configuration
1.Main body unit:
1) Machine’s main body adopts cast iron and steel structure.(cast iron after secondary operation and setting treatment)
2) Main driving roller adopts seamless steel pipe.(after tempering,surface hardening, chrome plated,mirror surface,dynamic balance treatment)
3) Main driving press roller adopts rubber roll.(nitrile-butadiene rubber)
4) Material guide rollers adopts steel rolls(aluminum alloy)and rubber roll(nitrile-butadiene rubber)
5) Driving mode of main body and rewind shafts adopt synchronizing wheel and belt.
6) All the others rollers are synchronize with rewind shafts(using flat belt and wheels).It can achieve small tension for material which is easy stretching.
2.Unwinding unit:
1) Unwind unit adopts one-piece structure.
2) It adopts removable bracket with ball slider.
3) Pneumatic shaftless auto loader.Non-axial Air pressure and get way with Air Chuck,who is caught taking raw materials fast,easy loading,single-person operation.1 set bias adjustable device can fine tune left and right,forward and backward through hand wheel.
4) Unwind tension’s actuator is 1 sets 100N/M magnetic powder brake,through loadcell and PLC to achieve close-loop auto tension.
5) LPC uses Bianfu Taiwan corrective device,it can achieve guide function by material’s edge and line.
3.Rewinding unit:
1) Shafts adopt 3 inch pneumatic friction shafts which is controlled by proportional valve.
2) Lock mode adopts pneumatic control.
3) Rewind tension’s actuator is 2 sets Germany brand Festo proportional valve,through PLC to achieve a constant tension.
4) Rewind press rollers provided by 2 pcs rubber press roller.
5) Slitting knives are controlled by pneumatic cylinder,10 sets of razor knives.And circle knife or pneumatic circle knife as optional.
6) Equipped with a vacuum-type waste edge exclusion system,use the strong force adsorb the waste edge out away.
7) Equipped with a discharge rack which can provide a larger diameter of the finished product.Simple and efficient to operate and save time for the next feed.
4.Electrical equipment unit:
1) Main motor inverter adopts 1 pc Rexroth Germany inverter.
2) Main motor adopts 1 pc China Danma motor.
3) Rewind motor inverter adopts 2pc Rexroth Germany inverters.
4) Rewind motor inverter adopts 2pc China Danma motors.
5) EPC adopts analog control.It drived by servo motor through CCD signal.
6) Adopts imported Siemens PLC to achieve accurate and stable control,true color touch screen display to enable simple and beautiful images.Interactive parameter setting the environment,eliminating the complicated configuration can start the job:The user pre-start only need to input the material thickness, width, density, diameter and speed parameters,the next will be done automatically by a computer calculation to complete.
7) With the functions of automatic and manual acceleration and deceleration.
5.Electrostatic elimination Unit:
The machine equipped a group of static brush apart on up and down rewinding shaft,which can effectively eliminate the static between slitting and rewinding.
Optional Devices
6 INCH PNEUMATIC FRICTION SHAFTS RINGS(34mm)For rewinder shaft
(one roll need 37pcs for 1300mm machine,2 rolls,74pcs)
80USD/pcx74
RAZOR KNIFE HOLDER
(Machine with 10sets,if you need more)
35USD/set
Circular knives roller for paper slitting(10sets of knives included)
1,000USD/set
Edge trimming rewinder machine
2,000USD/set
Webguide change from China brand to E+L Germany
1,500USD/set
Unwinder diameter change from 800mm to 1000mm
500USD/set
Static eliminator
500USD/set
Applications
The machine applies to slit cellophane,PET,OPP,CPP,PE,PS,PVC,metalized film,stamping foil, aluminum foil roll,laminated film thickness range 12-150micron;all kinds film with printing and without printing of various materials,etc.

PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 2
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 3
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 4
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 5
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 6
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 7
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 8
PRY-D1300 Plastic Film Paper Jumbo Roll Slitting And Rewinding Machine PLC Controlled High Speed 9
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
